Name: SN74AUP1G00DPWR
Brand: Texas Instruments
SKU: SN74AUP1G00DPWR
Price: 0.29 USD
Availability: InStock

REF: SN74AUP1G00DPWR Texas Instruments

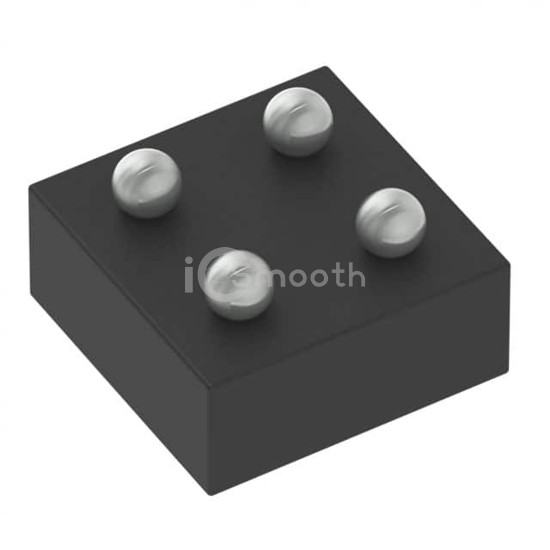

SN74AUP1G00DPWR

Texas Instruments

IC GATE NAND 1CH 2-INP 4X2SON

SN74AUP1G00DPWR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 1CH 2-INP 4X2SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 0.8V ~ 3.6V, package / case 4-XFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,595

Tiered Pricing USD

1+ $0.2900 —

10+ $0.1980 -32%

25+ $0.1756 -39%

100+ $0.1510 -48%

250+ $0.1391 -52%

500+ $0.1320 -54%

1,000+ $0.1261 -57% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	NAND Gate
Number of Circuits	1
Number of Inputs	2
Features	-
Voltage - Supply	0.8V ~ 3.6V
Current - Quiescent (Max)	500 nA
Current - Output High, Low	4mA, 4mA

Logic Level - Low	0.7V ~ 0.9V
Logic Level - High	1.6V ~ 2V
Max Propagation Delay @ V, Max CL	6.5ns @ 3.3V, 30pF
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Supplier Device Package	4-X2SON (0.8x0.8)
Package / Case	4-XFDFN Exposed Pad
