SN74AS805BDW

In Stock: 6,227
SN74AS805BDW - Texas Instruments - Logic - Gates and Inverters
REF: SN74AS805BDW Texas Instruments
SN74AS805BDW

Texas Instruments

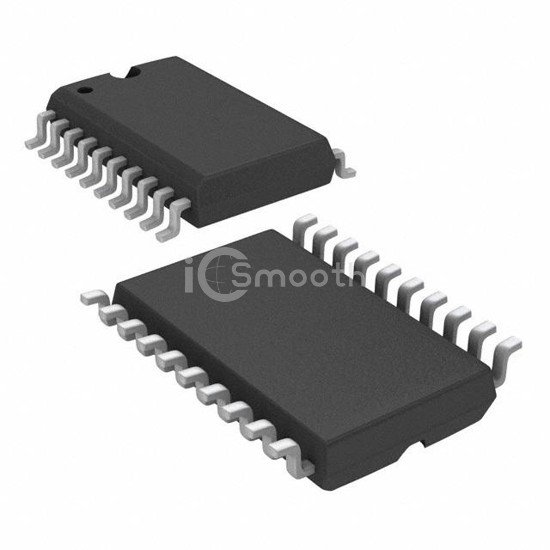

IC GATE NOR 6CH 2-INP 20SOIC

SN74AS805BDW is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NOR 6CH 2-INP 20SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, package / case 20-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 6,227

Specifications

15 parameters
Product StatusObsolete
Logic TypeNOR Gate
Number of Circuits6
Number of Inputs2
Features-
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Max)-
Current - Output High, Low48mA, 48mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL4.3ns @ 5V, 50pF
Operating Temperature0°C ~ 70°C
Mounting TypeSurface Mount
Supplier Device Package20-SOIC
Package / Case20-SOIC (0.295", 7.50mm Width)
