SN74AC00DBRG4

In Stock: 6,017

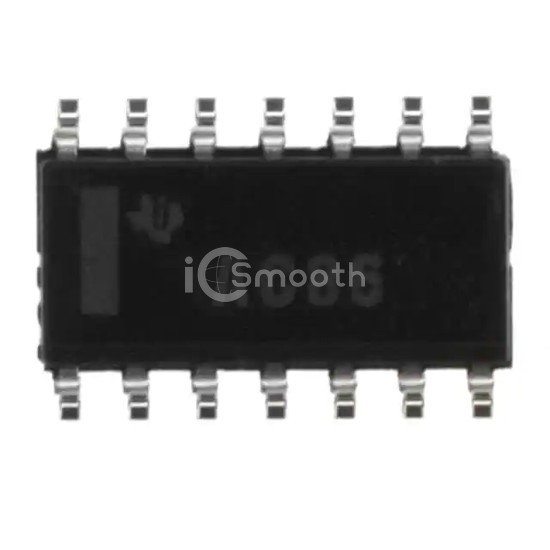

SN74AC00DBRG4 - Texas Instruments - Logic - Gates and Inverters
REF: SN74AC00DBRG4 Texas Instruments
SN74AC00DBRG4

Texas Instruments

IC GATE NAND 4CH 2-INP 14SSOP

SN74AC00DBRG4 is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 4CH 2-INP 14SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 6V, package / case 14-SSOP (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 6,017

Specifications

15 parameters
Product StatusObsolete
Logic TypeNAND Gate
Number of Circuits4
Number of Inputs2
Features-
Voltage - Supply2V ~ 6V
Current - Quiescent (Max)2 µA
Current - Output High, Low24mA, 24mA
Logic Level - Low0.9V ~ 1.65V
Logic Level - High2.1V ~ 3.85V
Max Propagation Delay @ V, Max CL8ns @ 5V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package14-SSOP
Package / Case14-SSOP (0.209", 5.30mm Width)
