Name: MUX509ID
Brand: Texas Instruments
SKU: MUX509ID
Price: 4.20 USD
Availability: InStock

REF: MUX509ID Texas Instruments

MUX509ID

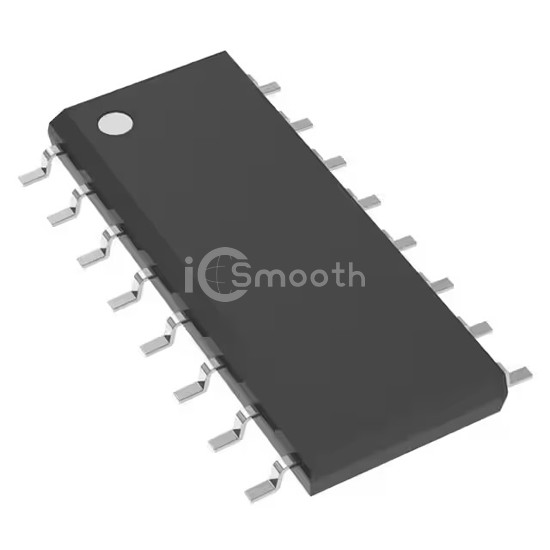

IC MUX DUAL 4:1 170 OHM 16SOIC

MUX509ID is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC MUX DUAL 4:1 170 OHM 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-SOIC (0.154", 3.90mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 2,071

Tiered Pricing USD

1+ $4.2000 —

10+ $3.1840 -24%

40+ $2.8213 -33%

120+ $2.6189 -38%

280+ $2.5003 -40%

520+ $2.4299 -42%

1,000+ $2.3677 -44%

2,520+ $2.2971 -45% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	170Ohm
Channel-to-Channel Matching (ΔRon)	2.4Ohm
Voltage - Supply, Single (V+)	10V ~ 36V
Voltage - Supply, Dual (V±)	±5V ~ 18V
Switch Time (Ton, Toff) (Max)	136ns, 75ns

-3db Bandwidth	-
Charge Injection	0.3pC
Channel Capacitance (CS(off), CD(off))	2.4pF, 4.3pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-96dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC
