Name: LMS4684ITLX/NOPB
Brand: Texas Instruments
SKU: LMS4684ITLX/NOPB
Price: 0.59 USD
Availability: InStock

REF: LMS4684ITLX/NOPB Texas Instruments

LMS4684ITLX/NOPB

Texas Instruments

IC SWITCH DUAL SPDT 12USMD

LMS4684ITLX/NOPB is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH DUAL SPDT 12USMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-WFBGA, number of circuits 2.

Datasheet Request a Quote

In Stock: 2,884

Tiered Pricing USD

3,000+ $0.5911 —

6,000+ $0.5778 -2%

9,000+ $0.5711 -3%

15,000+ $0.5638 -5% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	800mOhm
Channel-to-Channel Matching (ΔRon)	1.11mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	60ns, 40ns

-3db Bandwidth	-
Charge Injection	200pC
Channel Capacitance (CS(off), CD(off))	-
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-72dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount

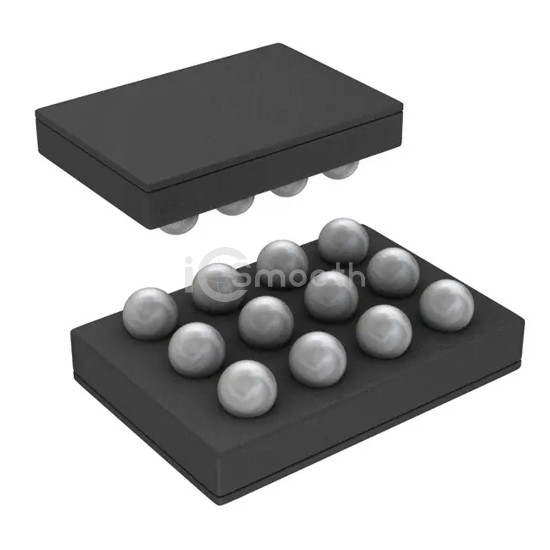

Package / Case	12-WFBGA
Supplier Device Package	12-uSMD (1.59x2.33)
