Name: CSD25501F3
Brand: Texas Instruments
SKU: CSD25501F3
Price: 0.10 USD
Availability: InStock

REF: CSD25501F3 Texas Instruments

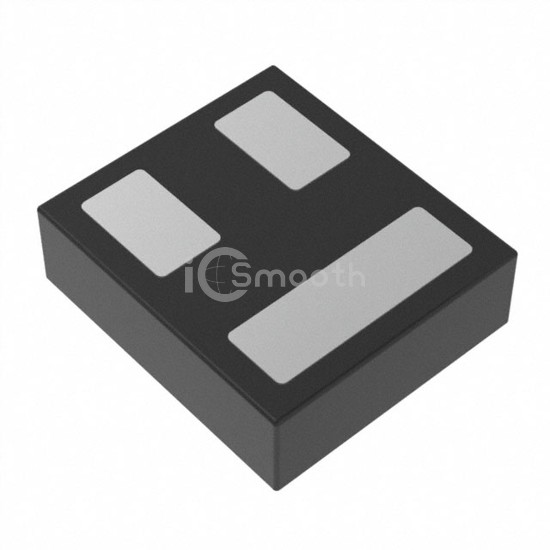

CSD25501F3

MOSFET P-CH 20V 3.6A 3LGA

CSD25501F3 is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET P-CH 20V 3.6A 3LGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFLGA.

Datasheet Request a Quote

In Stock: 4,061

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	3.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	76mOhm @ 400mA, 4.5V
Vgs(th) (Max) @ Id	1.05V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.33 nC @ 4.5 V

Vgs (Max)	-20V
Input Capacitance (Ciss) (Max) @ Vds	385 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	3-LGA (0.73x0.64)
Package / Case	3-XFLGA
