Name: CSD25485F5T
Brand: Texas Instruments
SKU: CSD25485F5T
Price: 1.04 USD
Availability: InStock

REF: CSD25485F5T Texas Instruments

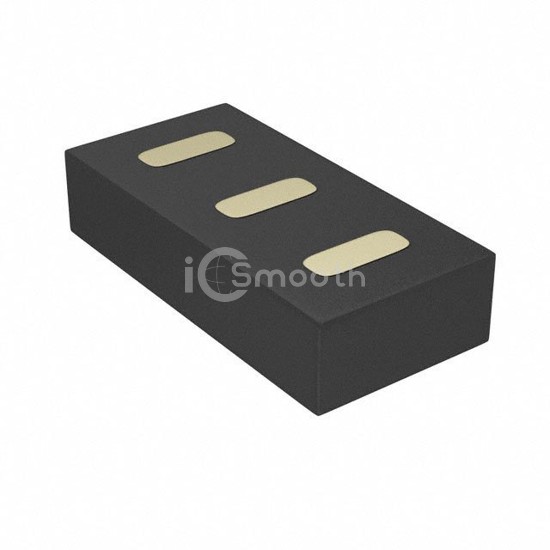

CSD25485F5T

MOSFET P-CH 20V 5.3A 3PICOSTAR

CSD25485F5T is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET P-CH 20V 5.3A 3PICOSTAR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 1,599

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	5.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 8V
Rds On (Max) @ Id, Vgs	35mOhm @ 900mA, 8V
Vgs(th) (Max) @ Id	1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	3.5 nC @ 4.5 V

Vgs (Max)	-12V
Input Capacitance (Ciss) (Max) @ Vds	533 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.4W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	3-PICOSTAR
Package / Case	3-XFDFN
