Name: CSD25404Q3T
Brand: Texas Instruments
SKU: CSD25404Q3T
Price: 1.44 USD
Availability: InStock

REF: CSD25404Q3T Texas Instruments

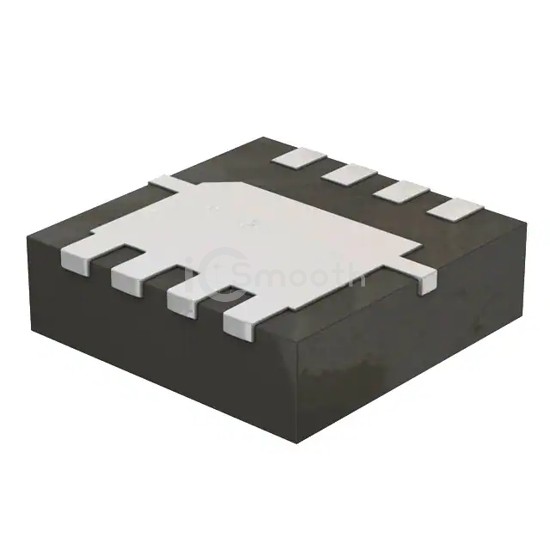

CSD25404Q3T

MOSFET P-CH 20V 104A 8VSON

CSD25404Q3T is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET P-CH 20V 104A 8VSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 4,367

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	104A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	6.5mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id	1.15V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14.1 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	2120 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2.8W (Ta), 96W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-VSONP (3x3.15)
Package / Case	8-PowerVDFN
