Name: CSD25402Q3A
Brand: Texas Instruments
SKU: CSD25402Q3A
Price: 0.98 USD
Availability: InStock

REF: CSD25402Q3A Texas Instruments

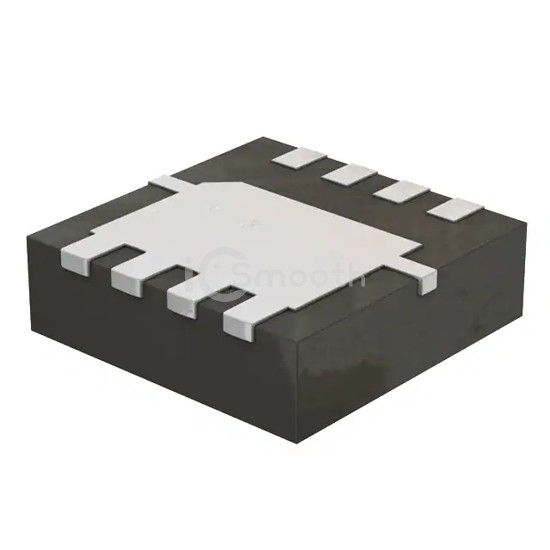

CSD25402Q3A

MOSFET P-CH 20V 76A 8VSON

CSD25402Q3A is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET P-CH 20V 76A 8VSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 7,187

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	76A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	8.9mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id	1.15V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9.7 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	1790 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2.8W (Ta), 69W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-VSONP (3x3.15)
Package / Case	8-PowerVDFN
