Name: CSD25201W15
Brand: Texas Instruments
SKU: CSD25201W15
Price: 0.31 USD
Availability: InStock

REF: CSD25201W15 Texas Instruments

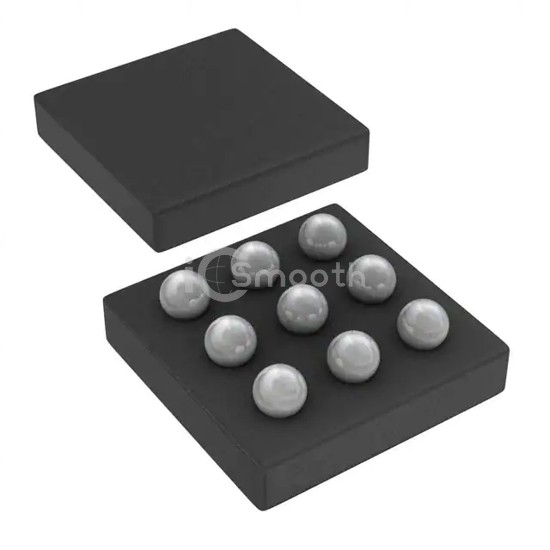

CSD25201W15

MOSFET P-CH 20V 4A 9DSBGA

CSD25201W15 is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET P-CH 20V 4A 9DSBGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 9-UFBGA, DSBGA.

Datasheet Request a Quote

In Stock: 1,086

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	40mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5.6 nC @ 4.5 V

Vgs (Max)	-6V
Input Capacitance (Ciss) (Max) @ Vds	510 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.5W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	9-DSBGA
Package / Case	9-UFBGA, DSBGA
