Name: CSD23280F3
Brand: Texas Instruments
SKU: CSD23280F3
Price: 0.47 USD
Availability: InStock

REF: CSD23280F3 Texas Instruments

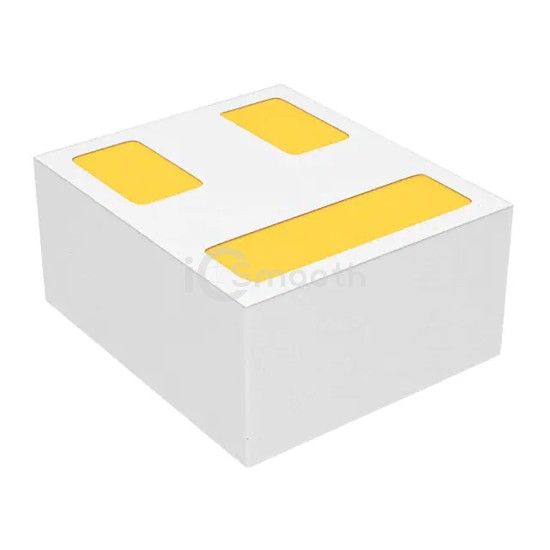

CSD23280F3

MOSFET P-CH 12V 1.8A 3PICOSTAR

CSD23280F3 is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET P-CH 12V 1.8A 3PICOSTAR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 16,837

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	1.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	116mOhm @ 400mA, 4.5V
Vgs(th) (Max) @ Id	0.95V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.23 nC @ 4.5 V

Vgs (Max)	-6V
Input Capacitance (Ciss) (Max) @ Vds	234 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	3-PICOSTAR
Package / Case	3-XFDFN
