Name: CSD23203W
Brand: Texas Instruments
SKU: CSD23203W
Price: 0.20 USD
Availability: InStock

REF: CSD23203W Texas Instruments

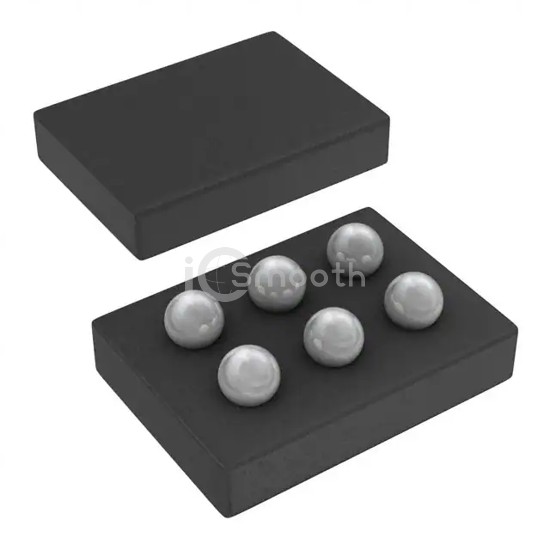

CSD23203W

MOSFET P-CH 8V 3A 6DSBGA

CSD23203W is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET P-CH 8V 3A 6DSBGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UFBGA, DSBGA.

Datasheet Request a Quote

In Stock: 4,318

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	8 V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	19.4mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.3 nC @ 4.5 V

Vgs (Max)	-6V
Input Capacitance (Ciss) (Max) @ Vds	914 pF @ 4 V
FET Feature	-
Power Dissipation (Max)	750mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-DSBGA (1x1.5)
Package / Case	6-UFBGA, DSBGA
