Name: CSD23201W10
Brand: Texas Instruments
SKU: CSD23201W10
Price: 0.23 USD
Availability: InStock

REF: CSD23201W10 Texas Instruments

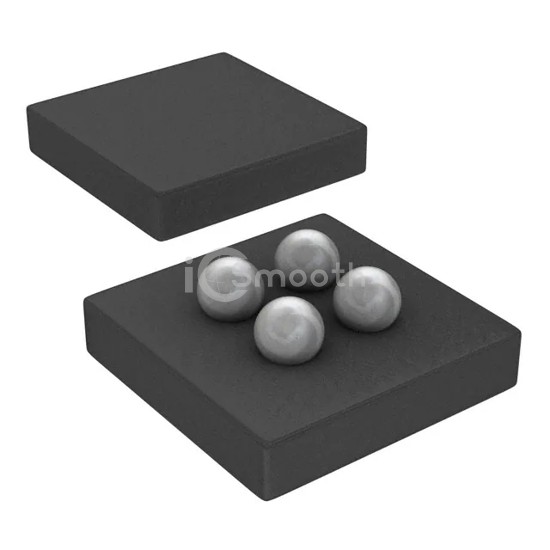

CSD23201W10

MOSFET P-CH 12V 2.2A 4DSBGA

CSD23201W10 is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET P-CH 12V 2.2A 4DSBGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-UFBGA, DSBGA.

Datasheet Request a Quote

In Stock: 457,050

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	2.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	82mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2.4 nC @ 4.5 V

Vgs (Max)	-6V
Input Capacitance (Ciss) (Max) @ Vds	325 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-DSBGA (1x1)
Package / Case	4-UFBGA, DSBGA
