Name: CSD19538Q2T
Brand: Texas Instruments
SKU: CSD19538Q2T
Price: 1.36 USD
Availability: InStock

REF: CSD19538Q2T Texas Instruments

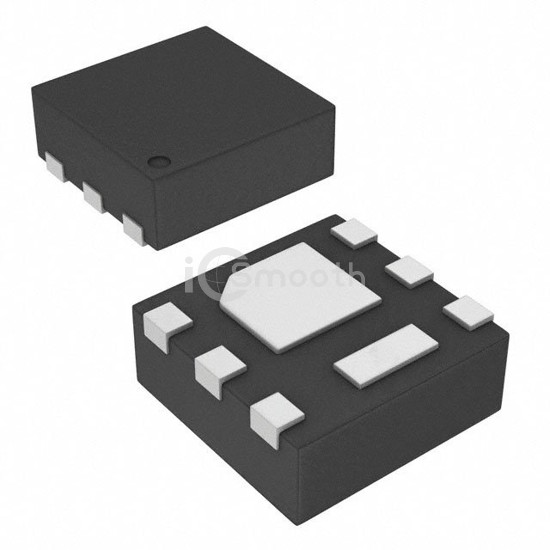

CSD19538Q2T

MOSFET N-CH 100V 13.1A 6WSON

CSD19538Q2T is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 100V 13.1A 6WSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,955

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	13.1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	59mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	3.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5.6 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	454 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 20.2W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WSON (2x2)
Package / Case	6-WDFN Exposed Pad
