Name: CSD18543Q3AT
Brand: Texas Instruments
SKU: CSD18543Q3AT
Price: 1.66 USD
Availability: InStock

REF: CSD18543Q3AT Texas Instruments

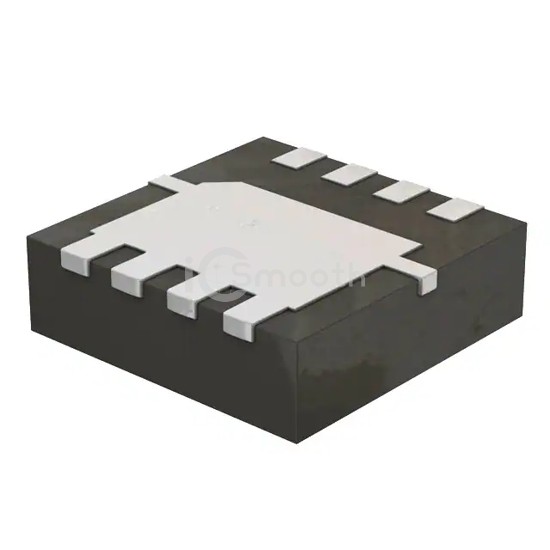

CSD18543Q3AT

MOSFET N-CH 60V 12A/60A 8VSON

CSD18543Q3AT is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 60V 12A/60A 8VSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 6,119

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	12A (Ta), 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	15.6mOhm @ 12A, 4.5V
Vgs(th) (Max) @ Id	2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14.5 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1150 pF @ 30 V
FET Feature	Standard
Power Dissipation (Max)	66W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-VSONP (3x3.15)
Package / Case	8-PowerVDFN
