Name: CSD18532NQ5B
Brand: Texas Instruments
SKU: CSD18532NQ5B
Price: 2.73 USD
Availability: InStock

REF: CSD18532NQ5B Texas Instruments

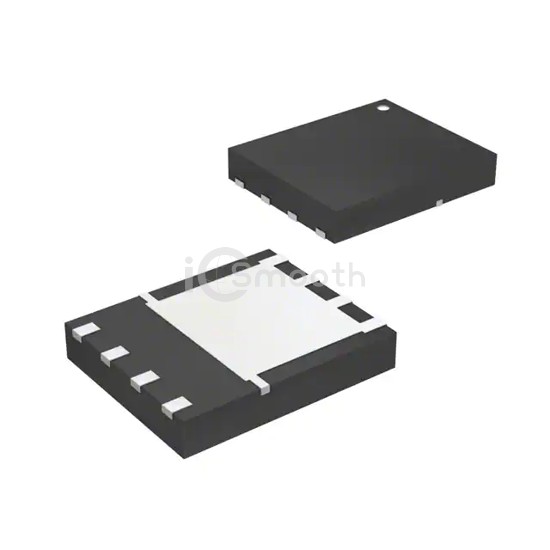

CSD18532NQ5B

MOSFET N-CH 60V 22A/100A 8VSON

CSD18532NQ5B is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 60V 22A/100A 8VSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 7,926

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	22A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	3.4mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	3.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	64 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5340 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	3.2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-VSON-CLIP (5x6)
Package / Case	8-PowerTDFN
