Name: CSD18509Q5B
Brand: Texas Instruments
SKU: CSD18509Q5B
Price: 2.58 USD
Availability: InStock

REF: CSD18509Q5B Texas Instruments

CSD18509Q5B

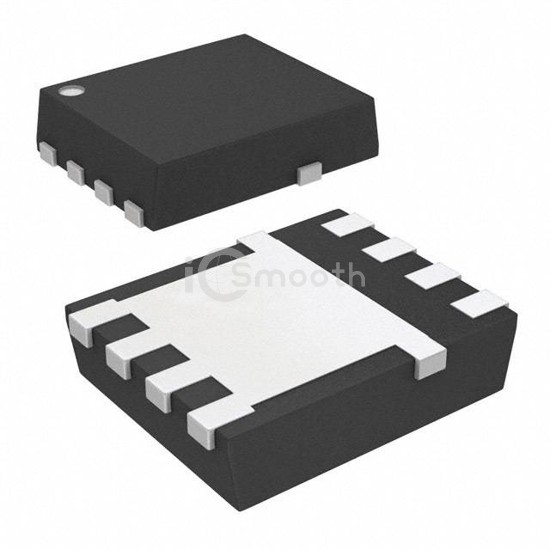

MOSFET N-CH 40V 100A 8VSON

CSD18509Q5B is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 40V 100A 8VSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 4,281

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	100A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1.2mOhm @ 32A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	195 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	13900 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta), 195W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-VSON-CLIP (5x6)
Package / Case	8-PowerTDFN
