Name: CSD17585F5
Brand: Texas Instruments
SKU: CSD17585F5
Price: 0.51 USD
Availability: InStock

REF: CSD17585F5 Texas Instruments

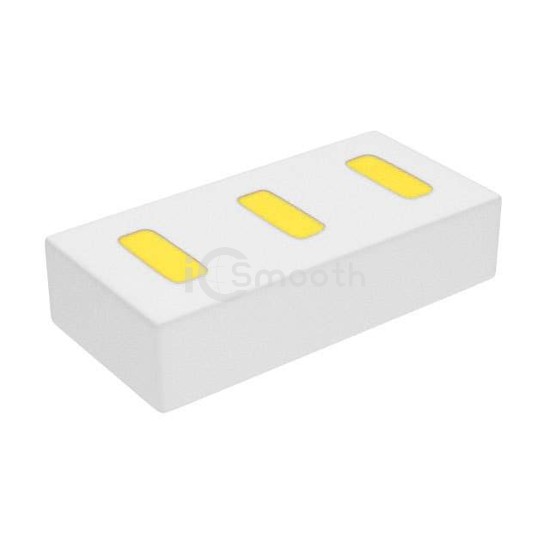

CSD17585F5

MOSFET N-CH 30V 5.9A 3PICOSTAR

CSD17585F5 is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 30V 5.9A 3PICOSTAR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-SMD, No Lead.

Datasheet Request a Quote

In Stock: 5,270

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	5.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	27mOhm @ 900mA, 10V
Vgs(th) (Max) @ Id	1.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5.1 nC @ 10 V

Vgs (Max)	20V
Input Capacitance (Ciss) (Max) @ Vds	380 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	3-PICOSTAR
Package / Case	3-SMD, No Lead
