Name: CSD17483F4
Brand: Texas Instruments
SKU: CSD17483F4
Price: 0.47 USD
Availability: InStock

REF: CSD17483F4 Texas Instruments

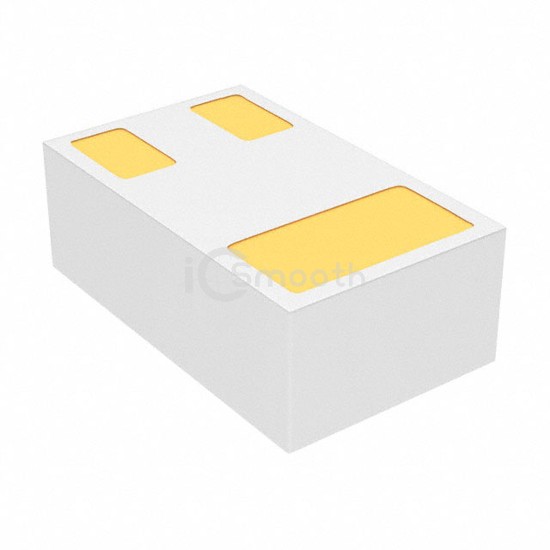

CSD17483F4

MOSFET N-CH 30V 1.5A 3PICOSTAR

CSD17483F4 is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 30V 1.5A 3PICOSTAR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 170,543

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	1.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	240mOhm @ 500mA, 8V
Vgs(th) (Max) @ Id	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.3 nC @ 4.5 V

Vgs (Max)	12V
Input Capacitance (Ciss) (Max) @ Vds	190 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	3-PICOSTAR
Package / Case	3-XFDFN
