Name: CSD17318Q2
Brand: Texas Instruments
SKU: CSD17318Q2
Price: 0.57 USD
Availability: InStock

REF: CSD17318Q2 Texas Instruments

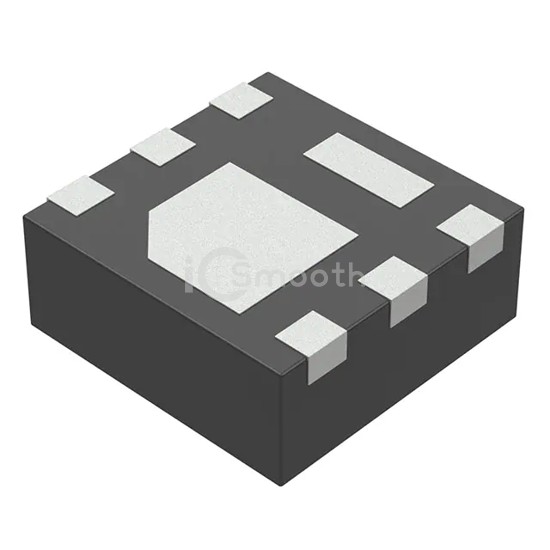

CSD17318Q2

MOSFET N-CH 30V 25A 6WSON

CSD17318Q2 is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 30V 25A 6WSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,713

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	25A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 8V
Rds On (Max) @ Id, Vgs	15.1mOhm @ 8A, 8V
Vgs(th) (Max) @ Id	1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6 nC @ 4.5 V

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	879 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	16W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WSON (2x2)
Package / Case	6-WDFN Exposed Pad
