Name: CSD17306Q5A
Brand: Texas Instruments
SKU: CSD17306Q5A
Price: 1.47 USD
Availability: InStock

REF: CSD17306Q5A Texas Instruments

CSD17306Q5A

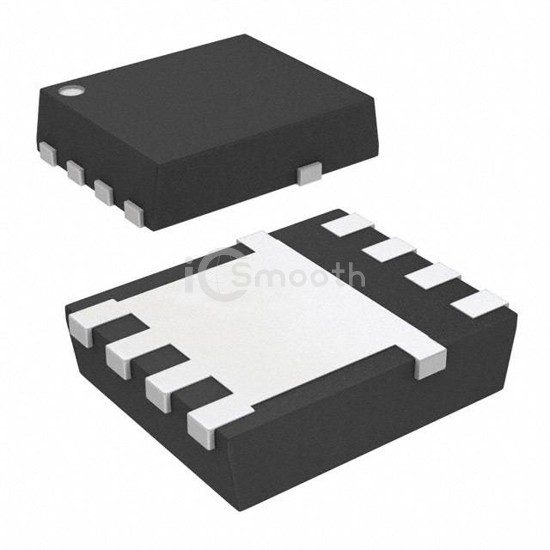

MOSFET N-CH 30V 24A/100A 8VSON

CSD17306Q5A is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 30V 24A/100A 8VSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 8,058

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	24A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	3V, 8V
Rds On (Max) @ Id, Vgs	3.7mOhm @ 22A, 8V
Vgs(th) (Max) @ Id	1.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15.3 nC @ 4.5 V

Vgs (Max)	+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds	2170 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	3.2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-VSONP (5x6)
Package / Case	8-PowerTDFN
