Name: CSD16407Q5C
Brand: Texas Instruments
SKU: CSD16407Q5C
Availability: InStock

REF: CSD16407Q5C Texas Instruments

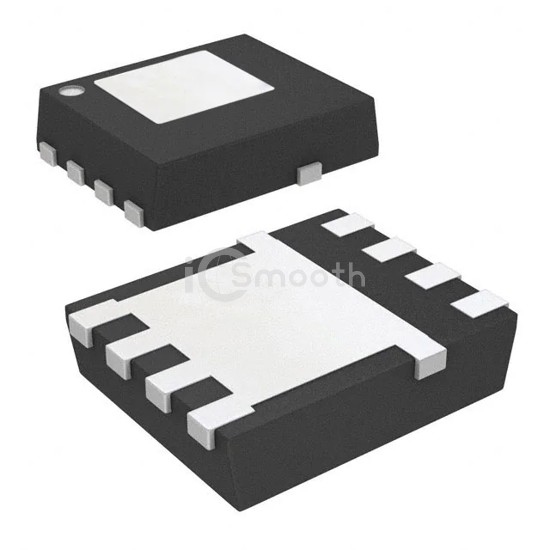

CSD16407Q5C

MOSFET N-CH 25V 31A/100A 8VSON

CSD16407Q5C is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 25V 31A/100A 8VSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 1,792

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	31A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.4mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	18 nC @ 4.5 V

Vgs (Max)	+16V, -12V
Input Capacitance (Ciss) (Max) @ Vds	2660 pF @ 12.5 V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-VSON-CLIP (5x6)
Package / Case	8-PowerTDFN
