Name: CSD16323Q3
Brand: Texas Instruments
SKU: CSD16323Q3
Price: 1.29 USD
Availability: InStock

REF: CSD16323Q3 Texas Instruments

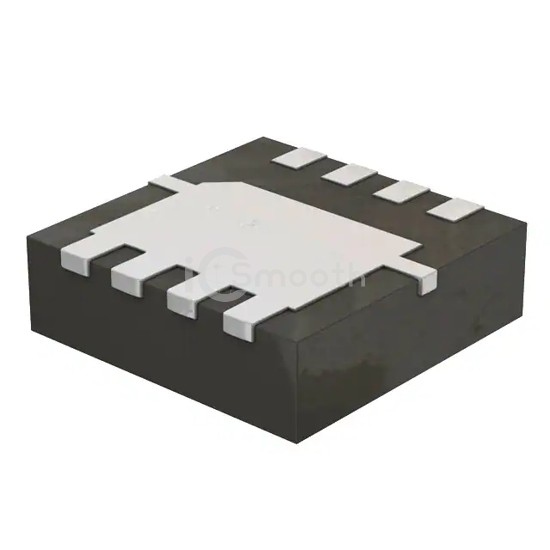

CSD16323Q3

MOSFET N-CH 25V 21A/60A 8VSON

CSD16323Q3 is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 25V 21A/60A 8VSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 55,142

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	21A (Ta), 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	3V, 8V
Rds On (Max) @ Id, Vgs	4.5mOhm @ 24A, 8V
Vgs(th) (Max) @ Id	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8.4 nC @ 4.5 V

Vgs (Max)	+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds	1300 pF @ 12.5 V
FET Feature	-
Power Dissipation (Max)	3W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-VSON-CLIP (3.3x3.3)
Package / Case	8-PowerTDFN
