Name: CSD16301Q2
Brand: Texas Instruments
SKU: CSD16301Q2
Price: 0.65 USD
Availability: InStock

REF: CSD16301Q2 Texas Instruments

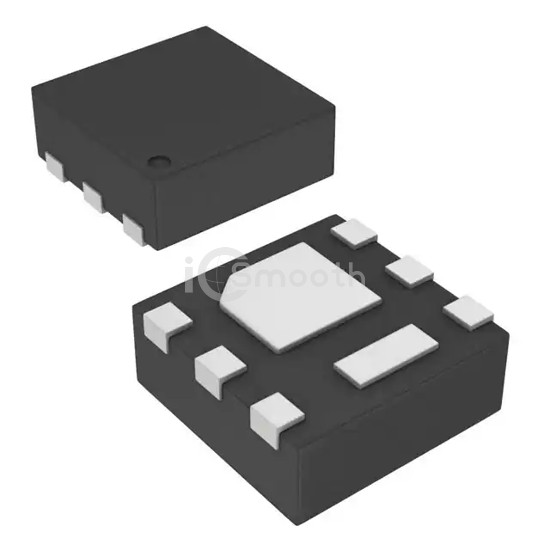

CSD16301Q2

MOSFET N-CH 25V 5A 6SON

CSD16301Q2 is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 25V 5A 6SON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-SMD, Flat Leads.

Datasheet Request a Quote

In Stock: 9,577

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	3V, 8V
Rds On (Max) @ Id, Vgs	24mOhm @ 4A, 8V
Vgs(th) (Max) @ Id	1.55V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2.8 nC @ 4.5 V

Vgs (Max)	+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds	340 pF @ 12.5 V
FET Feature	-
Power Dissipation (Max)	2.3W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-SON
Package / Case	6-SMD, Flat Leads
