Name: CSD15571Q2
Brand: Texas Instruments
SKU: CSD15571Q2
Price: 0.50 USD
Availability: InStock

REF: CSD15571Q2 Texas Instruments

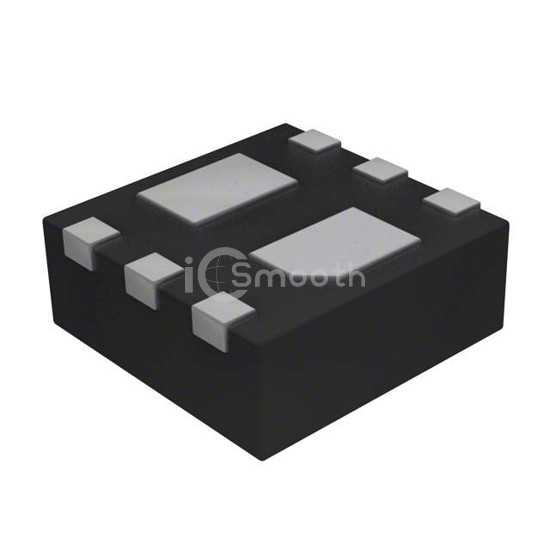

CSD15571Q2

MOSFET N-CH 20V 22A 6SON

CSD15571Q2 is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 20V 22A 6SON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,226

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	22A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	15mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.7 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	419 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-SON (2x2)
Package / Case	6-WDFN Exposed Pad
