Name: CSD15380F3
Brand: Texas Instruments
SKU: CSD15380F3
Price: 0.47 USD
Availability: InStock

REF: CSD15380F3 Texas Instruments

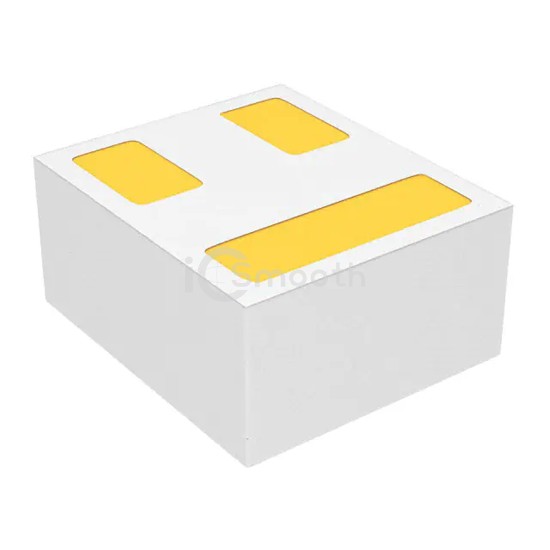

CSD15380F3

MOSFET N-CH 20V 500MA 3PICOSTAR

CSD15380F3 is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 20V 500MA 3PICOSTAR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 6,115

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.8V, 8V
Rds On (Max) @ Id, Vgs	1190mOhm @ 100mA, 8V
Vgs(th) (Max) @ Id	1.35V @ 2.5µA
Gate Charge (Qg) (Max) @ Vgs	0.281 nC @ 10 V

Vgs (Max)	10V
Input Capacitance (Ciss) (Max) @ Vds	10.5 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	3-PICOSTAR
Package / Case	3-XFDFN
