Name: CSD13306WT
Brand: Texas Instruments
SKU: CSD13306WT
Price: 1.15 USD
Availability: InStock

REF: CSD13306WT Texas Instruments

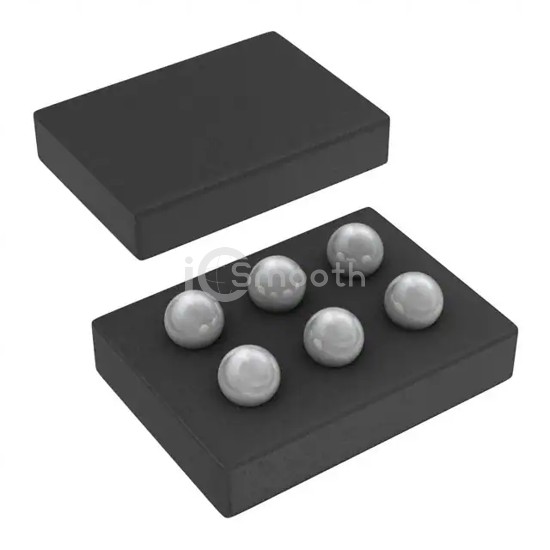

CSD13306WT

MOSFET N-CH 12V 3.5A 6DSBGA

CSD13306WT is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 12V 3.5A 6DSBGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UFBGA, DSBGA.

Datasheet Request a Quote

In Stock: 3,187

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	10.2mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id	1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	11.2 nC @ 4.5 V

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	1370 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	1.9W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-DSBGA (1x1.5)
Package / Case	6-UFBGA, DSBGA
