Name: CSD13302WT
Brand: Texas Instruments
SKU: CSD13302WT
Price: 1.02 USD
Availability: InStock

REF: CSD13302WT Texas Instruments

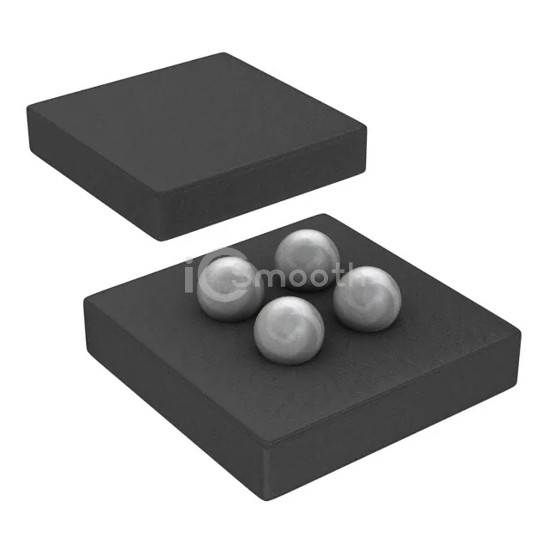

CSD13302WT

MOSFET N-CH 12V 1.6A 4DSBGA

CSD13302WT is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 12V 1.6A 4DSBGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-UFBGA, DSBGA.

Datasheet Request a Quote

In Stock: 3,707

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	1.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	17.1mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7.8 nC @ 4.5 V

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	862 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	1.8W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-DSBGA (1x1)
Package / Case	4-UFBGA, DSBGA
