Name: CSD13202Q2
Brand: Texas Instruments
SKU: CSD13202Q2
Price: 0.61 USD
Availability: InStock

REF: CSD13202Q2 Texas Instruments

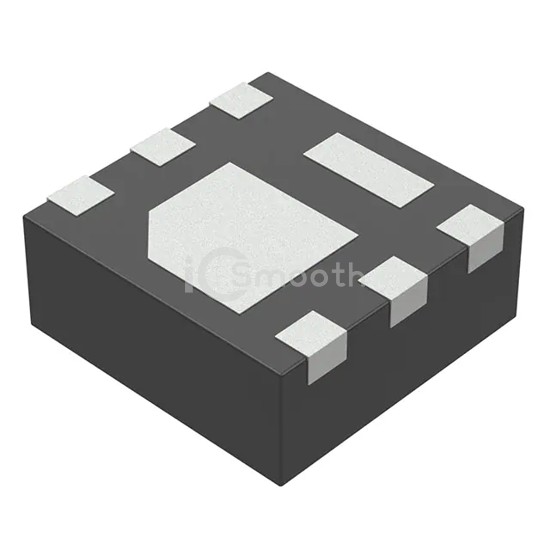

CSD13202Q2

MOSFET N-CH 12V 22A 6WSON

CSD13202Q2 is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 12V 22A 6WSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	22A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	9.3mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.6 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	997 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	2.7W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WSON (2x2)
Package / Case	6-WDFN Exposed Pad
