Name: CD74HC4067E
Brand: Texas Instruments
SKU: CD74HC4067E
Availability: InStock

REF: CD74HC4067E Texas Instruments

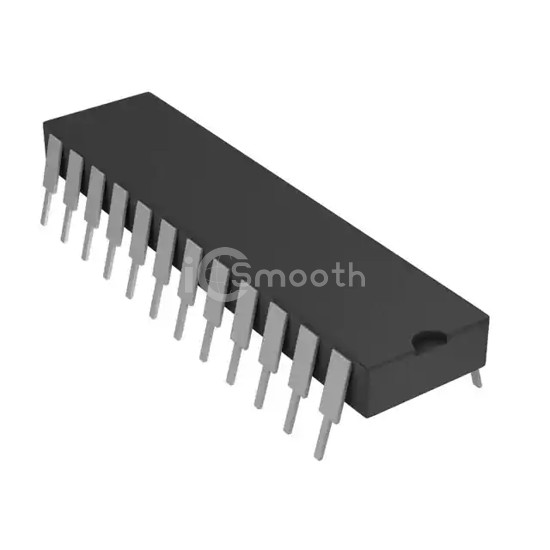

CD74HC4067E

IC MUX/DEMUX 1X16 24DIP

CD74HC4067E is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC MUX/DEMUX 1X16 24DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 24-DIP (0.600", 15.24mm), number of circuits 1.

Datasheet Request a Quote

In Stock: 8,876

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	16:1
Number of Circuits	1
On-State Resistance (Max)	160Ohm
Channel-to-Channel Matching (ΔRon)	8.5Ohm
Voltage - Supply, Single (V+)	2V ~ 6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	51ns, 49ns

-3db Bandwidth	89MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	5pF, 50pF
Current - Leakage (IS(off)) (Max)	800nA
Crosstalk	-
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Through Hole
Package / Case	24-DIP (0.600", 15.24mm)
Supplier Device Package	24-PDIP
