Name: CD4097BNSRG4
Brand: Texas Instruments
SKU: CD4097BNSRG4
Availability: InStock

REF: CD4097BNSRG4 Texas Instruments

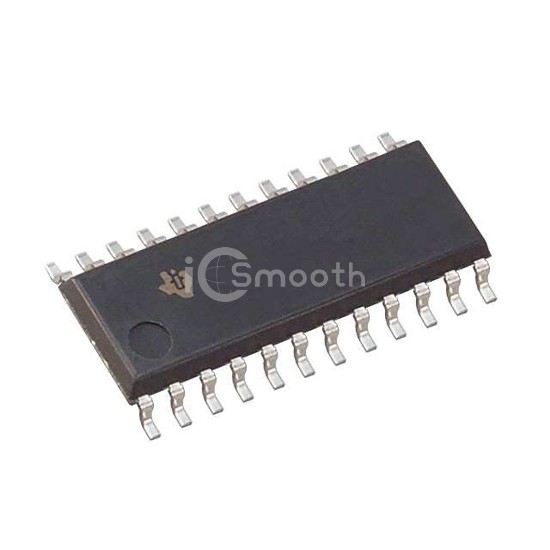

CD4097BNSRG4

IC MUX/DEMUX DUAL 1X8 24SO

CD4097BNSRG4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC MUX/DEMUX DUAL 1X8 24SO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 24-SOIC (0.209", 5.30mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 8,337

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	2
On-State Resistance (Max)	240Ohm
Channel-to-Channel Matching (ΔRon)	5Ohm
Voltage - Supply, Single (V+)	3V ~ 18V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	20MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	0.2pF, 35pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	24-SOIC (0.209", 5.30mm Width)
Supplier Device Package	24-SO
