Name: CD4067BE
Brand: Texas Instruments
SKU: CD4067BE
Availability: InStock

REF: CD4067BE Texas Instruments

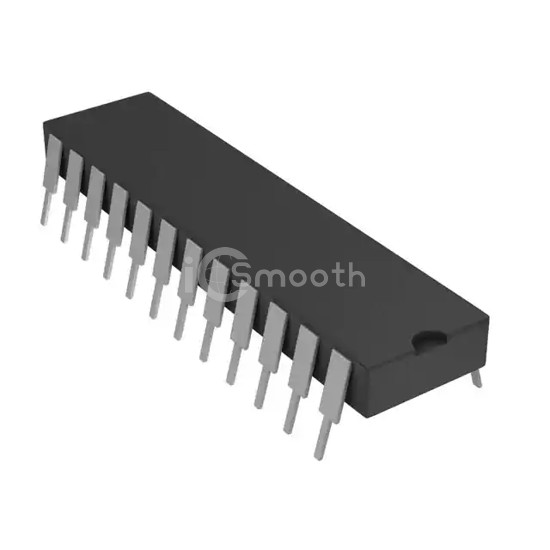

CD4067BE

IC MUX/DEMUX 1X16 24DIP

CD4067BE is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC MUX/DEMUX 1X16 24DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 24-DIP (0.600", 15.24mm), number of circuits 1.

Datasheet Request a Quote

In Stock: 9,500

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	16:1
Number of Circuits	1
On-State Resistance (Max)	240Ohm
Channel-to-Channel Matching (ΔRon)	5Ohm
Voltage - Supply, Single (V+)	3V ~ 18V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	14MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	0.2pF, 55pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Through Hole
Package / Case	24-DIP (0.600", 15.24mm)
Supplier Device Package	24-PDIP
