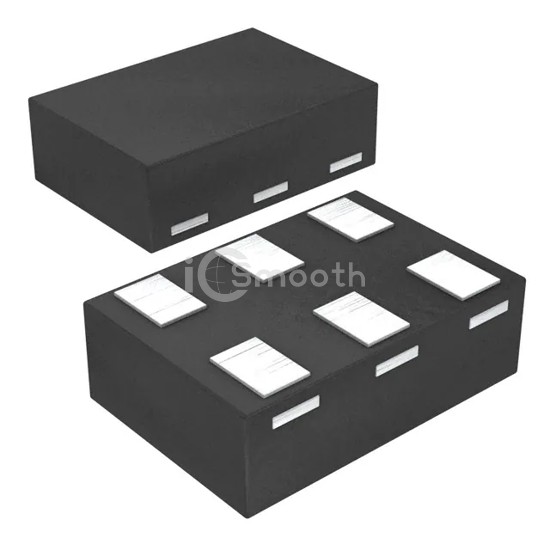

Name: 74LVC1G3157DRYRG4
Brand: Texas Instruments
SKU: 74LVC1G3157DRYRG4
Price: 0.07 USD
Availability: InStock

REF: 74LVC1G3157DRYRG4 Texas Instruments

74LVC1G3157DRYRG4

Texas Instruments

IC SWITCH SPDT 6SON

74LVC1G3157DRYRG4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH SPDT 6SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFDFN, number of circuits 1.

Datasheet Request a Quote

In Stock: 4,970

Tiered Pricing USD

5,000+ $0.0728 —

10,000+ $0.0707 -3%

15,000+ $0.0697 -4%

25,000+ $0.0685 -6%

35,000+ $0.0678 -7%

50,000+ $0.0672 -8%

125,000+ $0.0658 -10% BEST

Specifications

18 parameters

Product Status	Discontinued at Digi-Key
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	15Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	5.7ns, 3.8ns

-3db Bandwidth	300MHz
Charge Injection	7pC
Channel Capacitance (CS(off), CD(off))	5.2pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-54dB @ 10MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-UFDFN
Supplier Device Package	6-SON (1.45x1)
