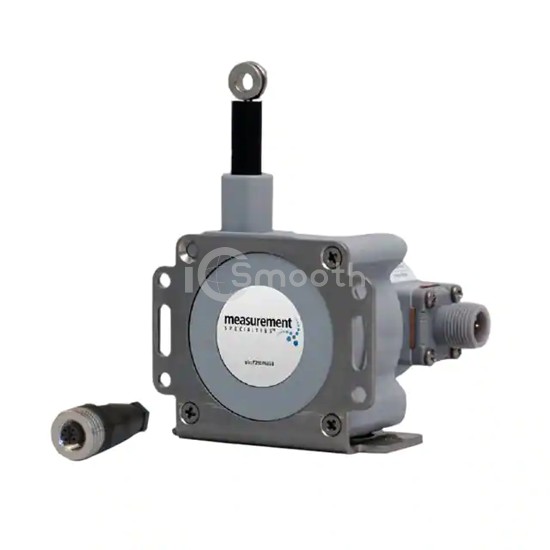

Name: SPD-4-3
Brand: TE Connectivity Measurement Specialties
SKU: SPD-4-3
Price: 532.75 USD
Availability: InStock

REF: SPD-4-3 TE Connectivity Measurement Specialties

SPD-4-3

TE Connectivity Measurement Specialties

SENSOR LINEAR 120MM CONNECTOR

SPD-4-3 is a Position Sensors - Angle, Linear Position Measuring manufactured by TE Connectivity Measurement Specialties. SENSOR LINEAR 120MM CONNECTOR. Key specifications: mounting type Custom, operating temperature -40°C ~ 70°C, voltage - supply 8V ~ 40V, package / case Box with Connector.

Datasheet Request a Quote

In Stock: 9

Tiered Pricing USD

1+ $532.7500 —

5+ $502.7040 -6%

10+ $491.5320 -8% BEST

Specifications

17 parameters

Product Status	Active
For Measuring	Linear Position
Technology	Resistive
Rotation Angle - Electrical, Mechanical	-
Linear Range	0 ~ 120mm (0 ~ 4.75")
Output	Analog Voltage, 4 ~ 20mA
Output Signal	-
Actuator Type	String Potentiometer
Linearity	-

Resistance	-
Resistance Tolerance	-
Voltage - Supply	8V ~ 40V
Mounting Type	Custom
Termination Style	Connector
Operating Temperature	-40°C ~ 70°C
Package / Case	Box with Connector
Supplier Device Package	-
