SGD-120-3

In Stock: 6,354

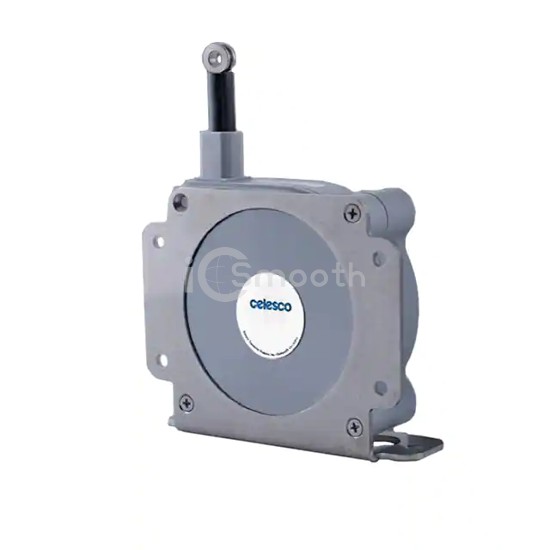

SGD-120-3 - TE Connectivity Measurement Specialties - Position Sensors - Angle, Linear Position Measuring
REF: SGD-120-3 TE Connectivity Measurement Specialties
SGD-120-3

TE Connectivity Measurement Specialties

SENSOR LINEAR 3048MM CONNECTOR

SGD-120-3 is a Position Sensors - Angle, Linear Position Measuring manufactured by TE Connectivity Measurement Specialties. SENSOR LINEAR 3048MM CONNECTOR. Key specifications: mounting type Custom, operating temperature -18°C ~ 70°C, voltage - supply 8V ~ 40V, package / case Box with Connector.

Datasheet Request a Quote

In Stock: 6,354

Tiered Pricing USD
1+ $657.5800 —
5+ $621.6780 -5%
10+ $608.3270 -7% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringLinear Position
TechnologyResistive
Rotation Angle - Electrical, Mechanical-
Linear Range0 ~ 3048mm (0 ~ 120")
OutputAnalog Voltage, 4 ~ 20mA
Output Signal-
Actuator TypeString Potentiometer
Linearity-
Resistance10 kOhms
Resistance Tolerance±10%
Voltage - Supply8V ~ 40V
Mounting TypeCustom
Termination StyleConnector
Operating Temperature-18°C ~ 70°C
Package / CaseBox with Connector
Supplier Device Package-
