Name: SG1-120-3
Brand: TE Connectivity Measurement Specialties
SKU: SG1-120-3
Price: 530.40 USD
Availability: InStock

REF: SG1-120-3 TE Connectivity Measurement Specialties

SG1-120-3

TE Connectivity Measurement Specialties

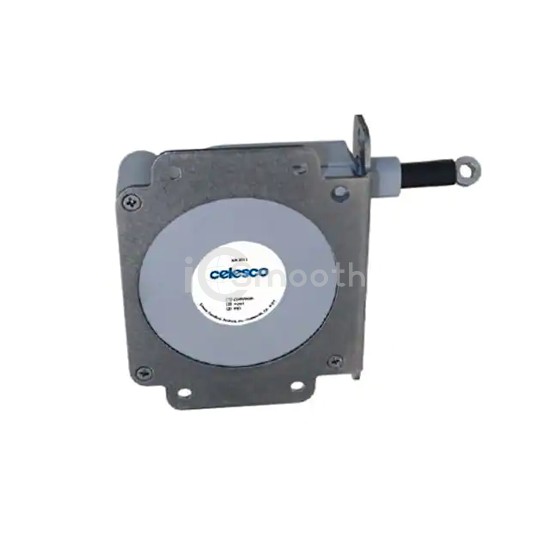

SENSOR LINEAR 3048MM CONNECTOR

SG1-120-3 is a Position Sensors - Angle, Linear Position Measuring manufactured by TE Connectivity Measurement Specialties. SENSOR LINEAR 3048MM CONNECTOR. Key specifications: mounting type Custom, operating temperature -40°C ~ 70°C, voltage - supply 30V, package / case Box with Connector.

Datasheet Request a Quote

In Stock: 4

Tiered Pricing USD

1+ $530.4000 —

5+ $500.4640 -6%

10+ $489.3340 -8% BEST

Specifications

17 parameters

Product Status	Active
For Measuring	Linear Position
Technology	Resistive
Rotation Angle - Electrical, Mechanical	-
Linear Range	0 ~ 3048mm (0 ~ 120")
Output	Analog Voltage
Output Signal	-
Actuator Type	String Potentiometer
Linearity	-

Resistance	10 kOhms
Resistance Tolerance	±10%
Voltage - Supply	30V
Mounting Type	Custom
Termination Style	Connector
Operating Temperature	-40°C ~ 70°C
Package / Case	Box with Connector
Supplier Device Package	-
