G-MRCO-055

In Stock: 9,355

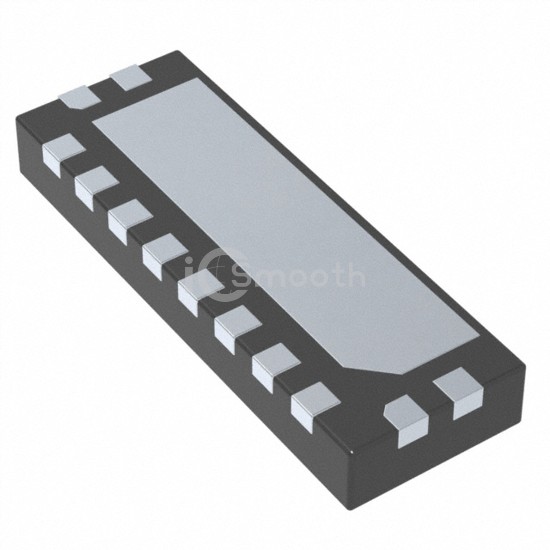

G-MRCO-055 - TE Connectivity Measurement Specialties - Position Sensors - Angle, Linear Position Measuring
REF: G-MRCO-055 TE Connectivity Measurement Specialties
G-MRCO-055

TE Connectivity Measurement Specialties

KMXP1002 1MM PITCH VERTICAL

G-MRCO-055 is a Position Sensors - Angle, Linear Position Measuring manufactured by TE Connectivity Measurement Specialties. KMXP1002 1MM PITCH VERTICAL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, voltage - supply 10V, package / case 12-WQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,355

Tiered Pricing USD
1+ $13.7300 —
5+ $12.4720 -9%
10+ $12.0060 -13%
25+ $11.4480 -17%
50+ $11.0668 -19%
100+ $10.9242 -20% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringLinear Position
TechnologyMagnetoresistive
Rotation Angle - Electrical, Mechanical-
Linear Range0 ~ 0.80mm (0 ~ 0.03")
OutputAnalog Voltage
Output SignalCosine, Sine
Actuator TypeExternal Magnet, Not Included
Linearity-
Resistance4 kOhms
Resistance Tolerance-
Voltage - Supply10V
Mounting TypeSurface Mount
Termination StyleSMD (SMT) Tab
Operating Temperature-40°C ~ 150°C
Package / Case12-WQFN Exposed Pad
Supplier Device Package12-TDLMP (6x2)
