Name: 02560410-000
Brand: TE Connectivity Measurement Specialties
SKU: 02560410-000
Price: 249.00 USD
Availability: InStock

REF: 02560410-000 TE Connectivity Measurement Specialties

02560410-000

TE Connectivity Measurement Specialties

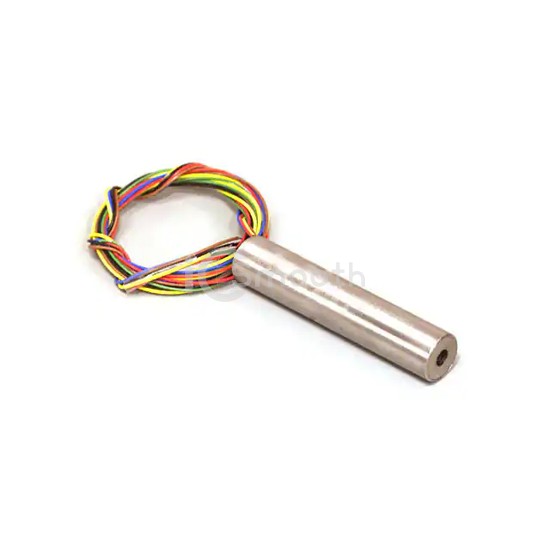

SENSOR LINEAR 6.35MM WIRE LEADS

02560410-000 is a Position Sensors - Angle, Linear Position Measuring manufactured by TE Connectivity Measurement Specialties. SENSOR LINEAR 6.35MM WIRE LEADS. Key specifications: mounting type Custom, operating temperature -55°C ~ 150°C (TA), voltage - supply 3V, package / case Cylinder, Wire Leads.

Datasheet Request a Quote

In Stock: 28

Tiered Pricing USD

1+ $249.0000 —

5+ $233.2400 -6%

10+ $227.3880 -9%

25+ $220.4000 -11% BEST

Specifications

17 parameters

Product Status	Active
For Measuring	Linear Position
Technology	LVDT (Linear Variable Differential Transformer)
Rotation Angle - Electrical, Mechanical	-
Linear Range	±6.35mm
Output	Analog Voltage
Output Signal	-
Actuator Type	Shaft
Linearity	±0.15%

Resistance	-
Resistance Tolerance	-
Voltage - Supply	3V
Mounting Type	Custom
Termination Style	Wire Leads
Operating Temperature	-55°C ~ 150°C (TA)
Package / Case	Cylinder, Wire Leads
Supplier Device Package	-
