02181600-120

In Stock: 3,248

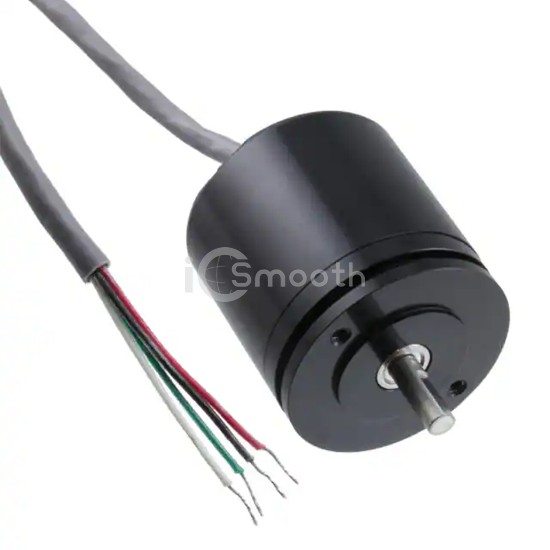

02181600-120 - TE Connectivity Measurement Specialties - Position Sensors - Angle, Linear Position Measuring
REF: 02181600-120 TE Connectivity Measurement Specialties
02181600-120

TE Connectivity Measurement Specialties

SENSOR ROTARY 120DEG WIRE LEADS

02181600-120 is a Position Sensors - Angle, Linear Position Measuring manufactured by TE Connectivity Measurement Specialties. SENSOR ROTARY 120DEG WIRE LEADS. Key specifications: mounting type Custom, operating temperature -18°C ~ 77°C, voltage - supply 10V ~ 28V, package / case Module.

Datasheet Request a Quote

In Stock: 3,248

Tiered Pricing USD
1+ $576.4600 —
5+ $544.3420 -6%
10+ $532.4000 -8% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringRotary Position
TechnologyInductive
Rotation Angle - Electrical, Mechanical0° ~ 120°, Continuous
Linear Range-
OutputAnalog Voltage
Output SignalClockwise Increase
Actuator TypeFlatted Shaft
Linearity±0.25%
Resistance-
Resistance Tolerance-
Voltage - Supply10V ~ 28V
Mounting TypeCustom
Termination StyleWire Leads
Operating Temperature-18°C ~ 77°C
Package / CaseModule
Supplier Device Package-
