Name: TSM900N06CW RPG
Brand: Taiwan Semiconductor Corporation
SKU: TSM900N06CW RPG
Price: 0.93 USD
Availability: InStock

REF: TSM900N06CW RPG Taiwan Semiconductor Corporation

TSM900N06CW RPG

Taiwan Semiconductor Corporation

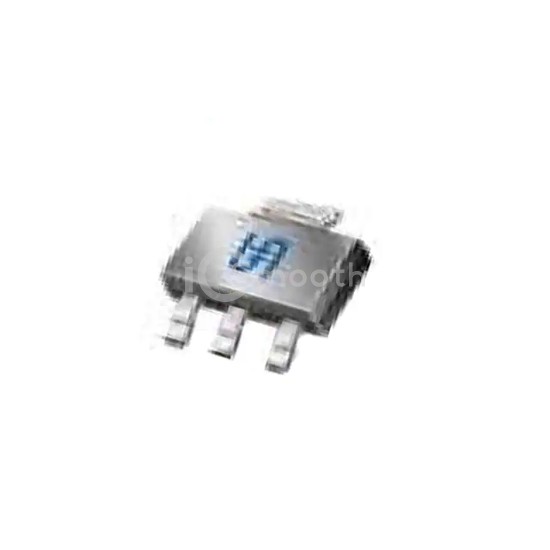

MOSFET N-CHANNEL 60V 11A SOT223

TSM900N06CW RPG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CHANNEL 60V 11A SOT223. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-261-4, TO-261AA.

Datasheet Request a Quote

In Stock: 4,067

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	11A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	90mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9.3 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	500 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	4.17W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-223
Package / Case	TO-261-4, TO-261AA
