Name: TSM8N50CP ROG
Brand: Taiwan Semiconductor Corporation
SKU: TSM8N50CP ROG
Availability: InStock

REF: TSM8N50CP ROG Taiwan Semiconductor Corporation

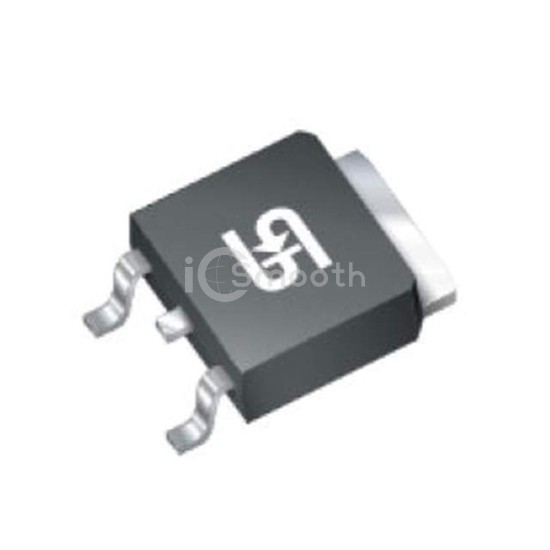

TSM8N50CP ROG

MOSFET N-CH 500V 7.2A TO252

TSM8N50CP ROG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CH 500V 7.2A TO252. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 9,755

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	7.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	850mOhm @ 3.6A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	26.6 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1595 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	89W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252, (D-Pak)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
