Name: TSM80N400CF C0G
Brand: Taiwan Semiconductor Corporation
SKU: TSM80N400CF C0G
Price: 5.88 USD
Availability: InStock

REF: TSM80N400CF C0G Taiwan Semiconductor Corporation

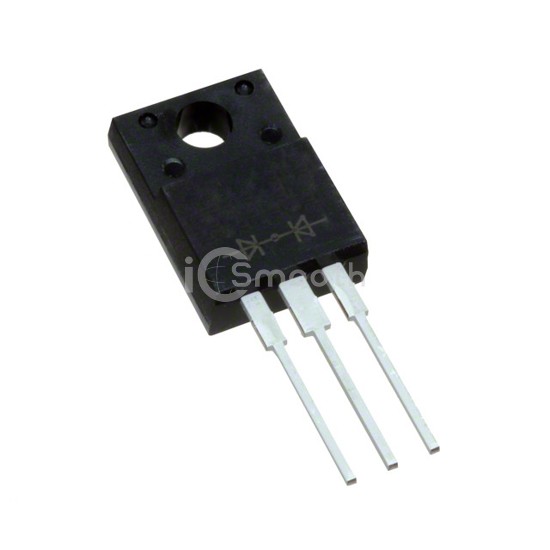

TSM80N400CF C0G

Taiwan Semiconductor Corporation

MOSFET N-CH 800V 12A ITO220S

TSM80N400CF C0G is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CH 800V 12A ITO220S. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 3,049

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800 V
Current - Continuous Drain (Id) @ 25°C	12A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	400mOhm @ 2.7A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	51 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1848 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	69W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	ITO-220S
Package / Case	TO-220-3 Full Pack
