Name: TSM60NB600CP ROG
Brand: Taiwan Semiconductor Corporation
SKU: TSM60NB600CP ROG
Price: 3.52 USD
Availability: InStock

REF: TSM60NB600CP ROG Taiwan Semiconductor Corporation

TSM60NB600CP ROG

Taiwan Semiconductor Corporation

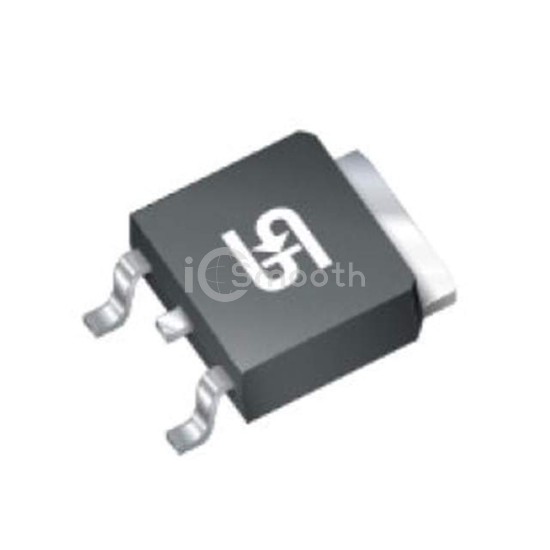

MOSFET N-CHANNEL 600V 7A TO252

TSM60NB600CP ROG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CHANNEL 600V 7A TO252. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 2,336

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	600mOhm @ 2.1A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	516 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	63W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252, (D-Pak)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
