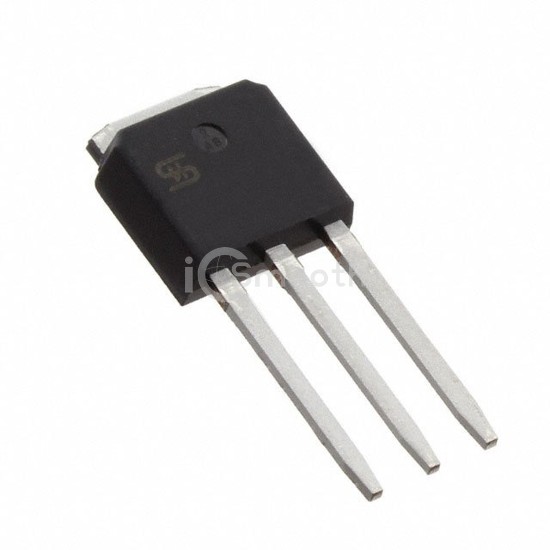

Name: TSM60N600CH C5G
Brand: Taiwan Semiconductor Corporation
SKU: TSM60N600CH C5G
Price: 0.81 USD
Availability: InStock

REF: TSM60N600CH C5G Taiwan Semiconductor Corporation

TSM60N600CH C5G

Taiwan Semiconductor Corporation

MOSFET N-CHANNEL 600V 8A TO251

TSM60N600CH C5G is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CHANNEL 600V 8A TO251. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 6,783

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	600mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	743 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	83W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-251 (IPAK)
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
