Name: TSM600N25ECH C5G
Brand: Taiwan Semiconductor Corporation
SKU: TSM600N25ECH C5G
Price: 1.03 USD
Availability: InStock

REF: TSM600N25ECH C5G Taiwan Semiconductor Corporation

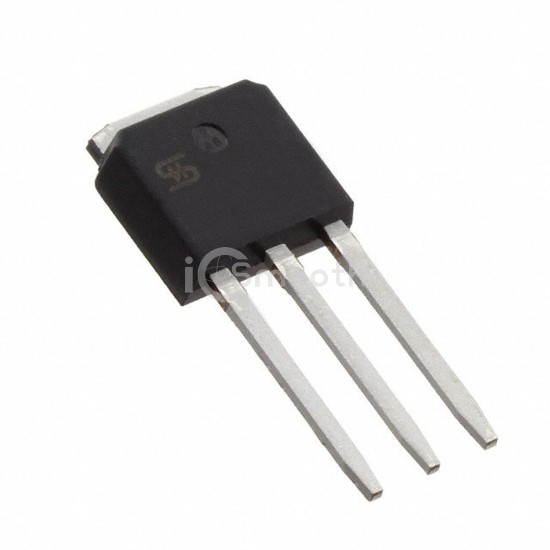

TSM600N25ECH C5G

Taiwan Semiconductor Corporation

MOSFET N-CHANNEL 250V 8A TO251

TSM600N25ECH C5G is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CHANNEL 250V 8A TO251. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 1,726

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	250 V
Current - Continuous Drain (Id) @ 25°C	8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	600mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8.4 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	423 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	52W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-251 (IPAK)
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
