Name: TSM480P06CH X0G
Brand: Taiwan Semiconductor Corporation
SKU: TSM480P06CH X0G
Price: 2.28 USD
Availability: InStock

REF: TSM480P06CH X0G Taiwan Semiconductor Corporation

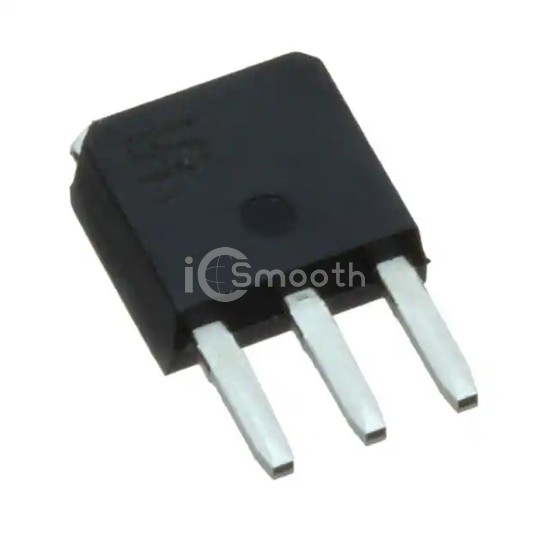

TSM480P06CH X0G

Taiwan Semiconductor Corporation

MOSFET P-CHANNEL 60V 20A TO251

TSM480P06CH X0G is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET P-CHANNEL 60V 20A TO251. Key specifications: mounting type Through Hole, operating temperature -50°C ~ 150°C (TJ), package / case TO-251-3 Stub Leads, IPak.

Datasheet Request a Quote

In Stock: 1,872

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	48mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	22.4 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1250 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	66W (Tc)
Operating Temperature	-50°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-251 (IPAK)
Package / Case	TO-251-3 Stub Leads, IPak
