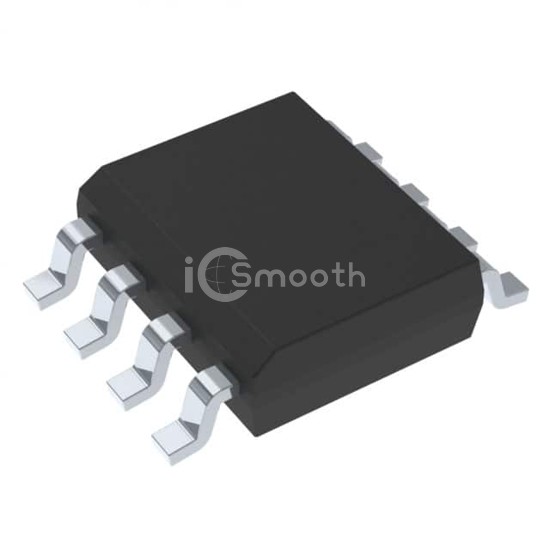

Name: TSM4435BCS RLG
Brand: Taiwan Semiconductor Corporation
SKU: TSM4435BCS RLG
Availability: InStock

REF: TSM4435BCS RLG Taiwan Semiconductor Corporation

TSM4435BCS RLG

MOSFET P-CHANNEL 30V 9.1A 8SOP

TSM4435BCS RLG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET P-CHANNEL 30V 9.1A 8SOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width).

Request a Quote

In Stock: 8,786

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	9.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	21mOhm @ 9.1A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	3.2 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1900 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOP
Package / Case	8-SOIC (0.154", 3.90mm Width)
