Name: TSM35N10CP ROG
Brand: Taiwan Semiconductor Corporation
SKU: TSM35N10CP ROG
Price: 1.82 USD
Availability: InStock

REF: TSM35N10CP ROG Taiwan Semiconductor Corporation

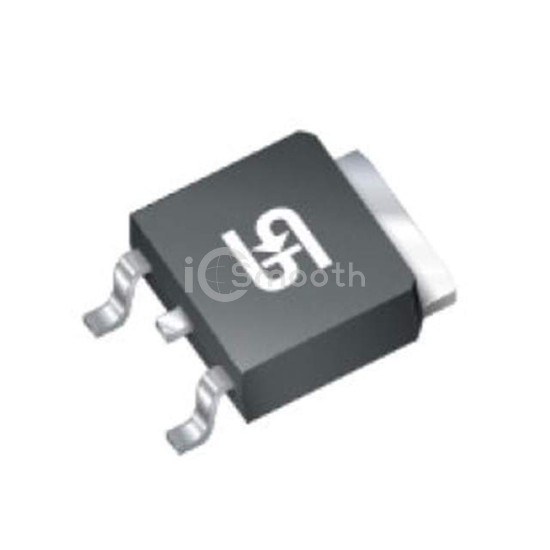

TSM35N10CP ROG

Taiwan Semiconductor Corporation

MOSFET N-CHANNEL 100V 32A TO252

TSM35N10CP ROG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CHANNEL 100V 32A TO252. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 8,843

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	32A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	37mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	34 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1598 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	83.3W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252, (D-Pak)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
