Name: TSM3457CX6 RFG
Brand: Taiwan Semiconductor Corporation
SKU: TSM3457CX6 RFG
Price: 0.43 USD
Availability: InStock

REF: TSM3457CX6 RFG Taiwan Semiconductor Corporation

TSM3457CX6 RFG

Taiwan Semiconductor Corporation

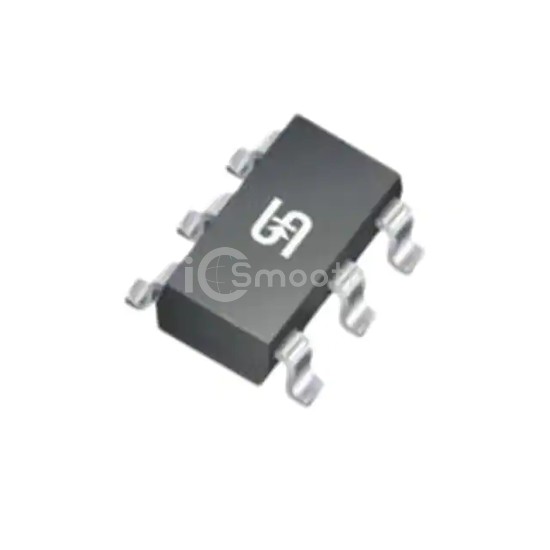

MOSFET P-CHANNEL 30V 5A SOT26

TSM3457CX6 RFG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET P-CHANNEL 30V 5A SOT26. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6.

Datasheet Request a Quote

In Stock: 9,283

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	60mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	27 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	551.57 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-26
Package / Case	SOT-23-6
