Name: TSM3446CX6 RFG
Brand: Taiwan Semiconductor Corporation
SKU: TSM3446CX6 RFG
Price: 0.91 USD
Availability: InStock

REF: TSM3446CX6 RFG Taiwan Semiconductor Corporation

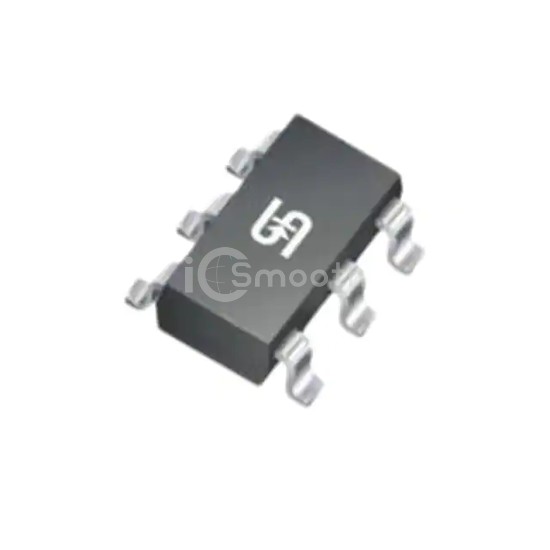

TSM3446CX6 RFG

Taiwan Semiconductor Corporation

MOSFET N-CHANNEL 20V 5.3A SOT26

TSM3446CX6 RFG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CHANNEL 20V 5.3A SOT26. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6.

Datasheet Request a Quote

In Stock: 44,165

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	5.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	33mOhm @ 5.3A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8.8 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	700 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-26
Package / Case	SOT-23-6
